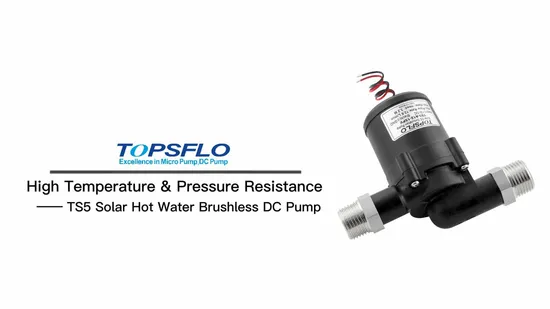

Brushless Solar Powered DC Mini Circulating Pumps
Description
Basic Info.
| Model NO. | TS5 |
| Driving Type | Motor |
| Material | Stainless Steel |
| Structure | Single-stage Pump |
| Assembly | Booster Pump |
| Power | Electric |
| Start Up | Start Pump |
| Type | Brushless Mini Pump |
| Application | Water Circulating |
| Theory | Centrifugal Pump |
| Motor | DC Motor, DC Brushless Motor,BLDC Motor |
| Voltage | 12V DC |
| Pressure | 10 Bar |
| Transport Package | Standard Export Packing or OEM Packing |
| Specification | CE, IEC, RoHS |
| Trademark | TOPSFLO |
| Origin | China |
| HS Code | 84137090 |
| Production Capacity | 100, 000 PCS/Month |
Product Description
Why choose TOPSFLO Factory ?
♦ TOPSFLO is the only double certified enterprise by German TUV IATF16949 & ISO9001 in the pump industry
♦ 16 years of industry experience.Independent research and development, national high-tech enterprise, multiple domestic and foreign invention patents
♦ Annual production capacity of 3,008,000 pieces
♦ 4 laboratories that meeting the CNAS certification standard
♦ 80% of the products are exported to high-end market in Europe and America
You want it, We all have !
If you don't have one of your application areas, please contact us!
Brushless Solar Powered DC Mini Circulating Pumps
Product detail
Areas of Use
* Solar Water Heating Systems * Hot Water Circulation
* Radiant Floor Heating * Heat Transfer Applications
* 12V Operated Cooling Systems * Food Liquid Transfer
* Hot Wort Transfer Pump for Home Brewing * Sous Vide
Packaging
For more detail, please feel free contact us!
Remarks:
- We are High-end Brushless DC pumps Manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us
Customer Reviews
APPLICATION FIELD Trustworthy micro pump supplier♦ Home appliance
Electric Instant Water Heater "Zero cold water" water heater Air Source Water Heater Dishwasher Intelligent Toilet Home Brewing Solar Energy Water Heater Water Cooling / Heating Mattress Computer Water Cooling System
♦Food industry Carbonated Beverage Machine Water Dispenser Coffee Machine ♦Automotive industry Car Engine Pre-heating EV Battery Cooling System
Description:Features
1. Voltage: 6V-24V DC (Rate:12V DC) 2. Soft start at very low in-rush current, good convenient working directly with PV panel3. Advanced magnetic drive technology for static-impeller, without any leakage for ever 4. Max system pressure: 10Bar5. Max working temperature: 110ºC (230ºF) 6. Min start-up power consumption less than 2 Watt7. Low noise: 45dB(A) far from 1m distance 8. Heavy duty work, can sustain continual 24 hours' work 9. Low power consumption,Low or no maintenance
PV operated
For solar system loops, the TS5 pump can be powered directly from a PV panel. The sun comes up, heat builds in the solar hot water panel and at the same time electricity is made in the PV panel. The pump slowly starts with the smallest amount of current and pushes the heated water to the storage tank. It's all too simple and eliminates all controllers, thermostats and sensors.
Specification
| MODEL | PV MODULE WATTS (W) | MAX FLOW(L/M) | MAX HEAD METERS(M) |
| TS5-A12-5PV | 5 | 8.4 | 1.6 |
| TS5-A12-10PV | 10 | 10 | 2.4 |
| TS5-A12-15PV | 15 | 12.6 | 3.2 |
